Universal Round Bar

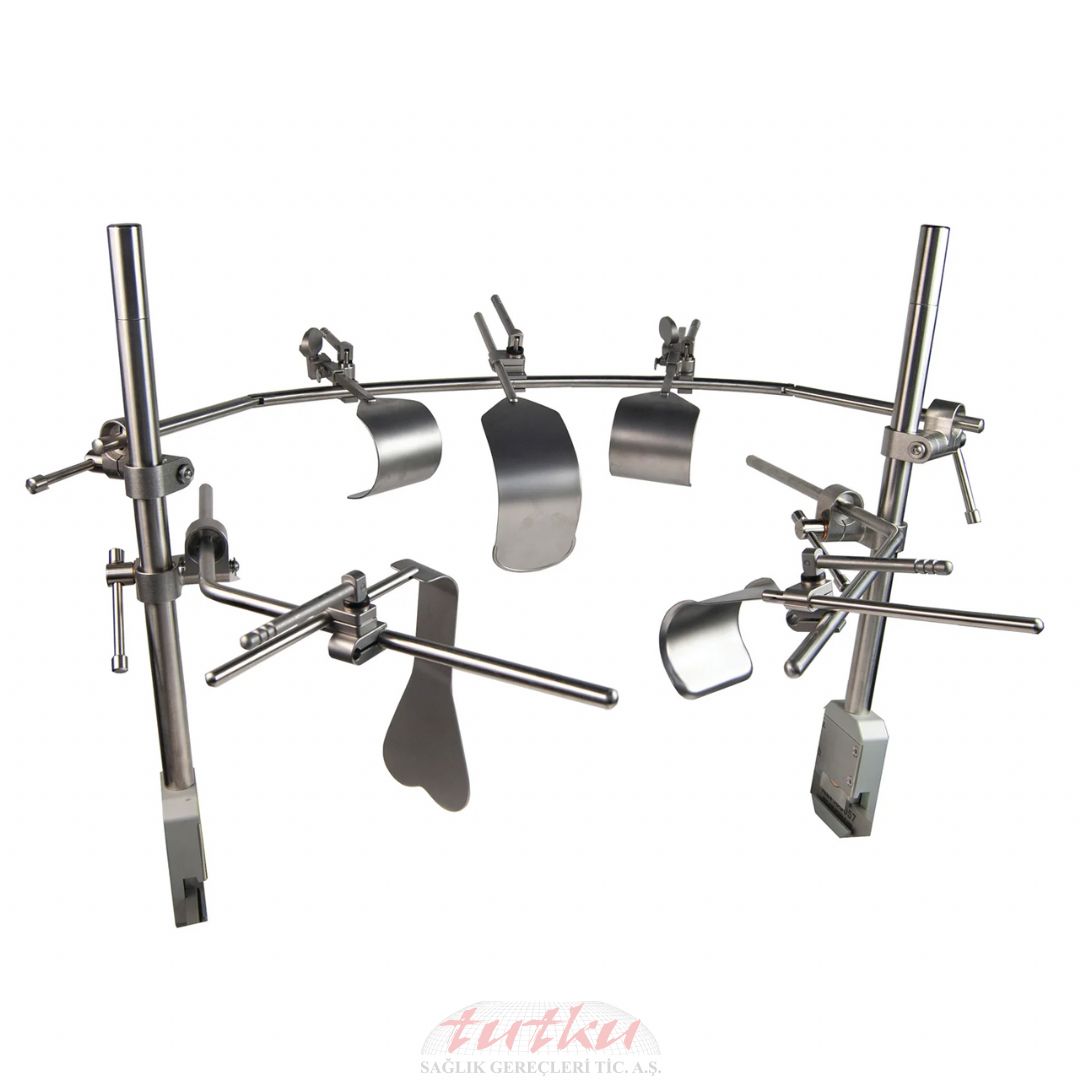

Universal TMR Bilateral Deluxe System, For Upper Abdominal Retraction

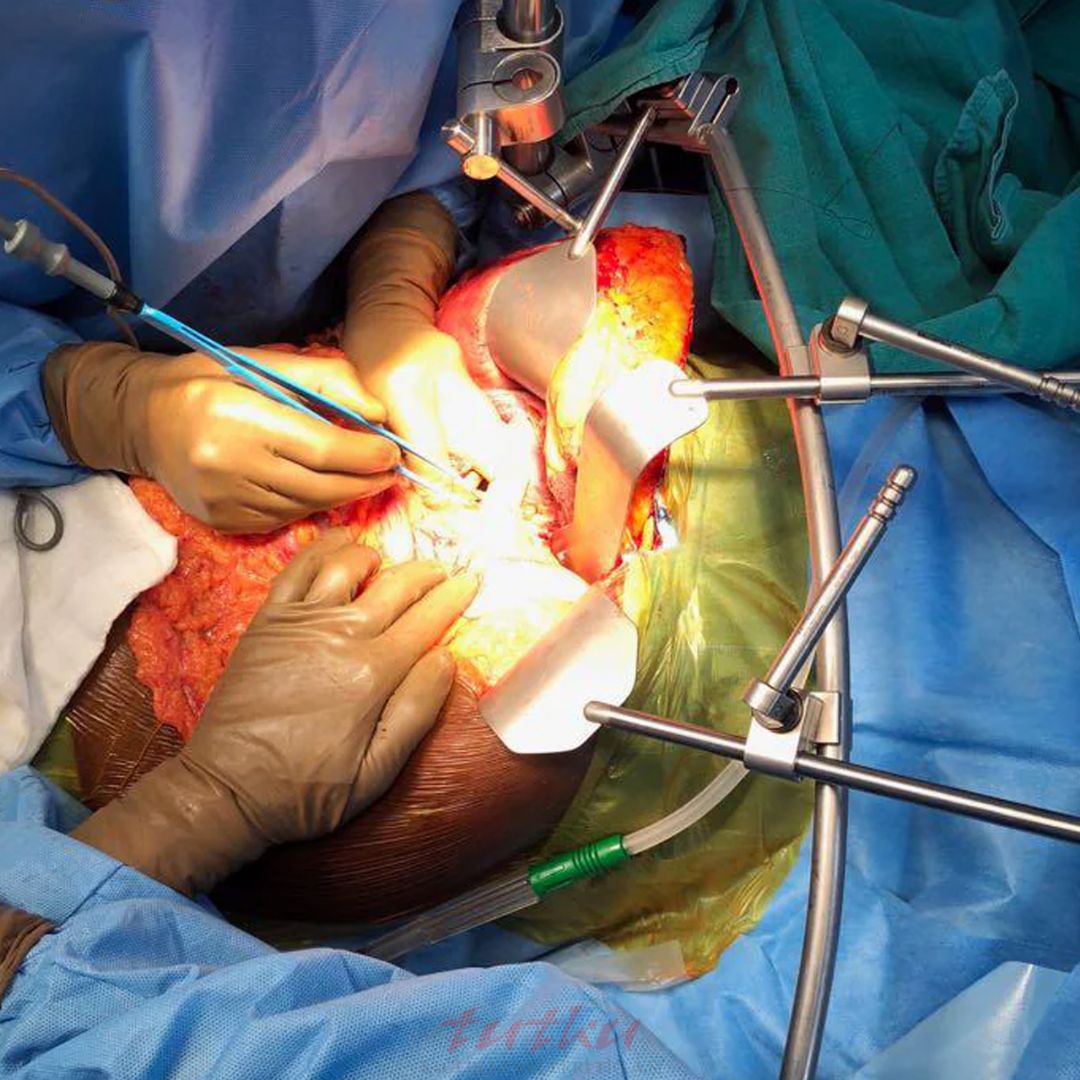

The Bilateral Universal TMR Systems are suitable for upper abdominal, liver transplant and bariatric surgery.
Mediflex's Universal Round Bar™ Systems offers a cost-effective retraction solution with compatible components to other round bar systems.
The Deluxe System includes Twist Ratchets which provide controlled retraction to protect sensitive anatomy.
- Sturdy 1" platform mounted to the table
- Hybrid system used for open and laparoscopic cases
- Interchangeability with competitor systems (Blades, Snap Clamps, Bridges, ½" x ½" Coupler)
- Simple, rapid set-up
- Expanded versatility for different procedures/specialties
- Twist Ratchet provides controlled retraction to protect sensitive anatomy
Share
QTY | REF. NO. | DESCRIPTION / SIZE |
2 ea. | 72009 | Field Post 18" |
4 ea. | 69613 | Post Coupling, 1" x ½" |
1 ea. | 69611 | Hinged Crossbar Frame |
2 ea. | 69614 | Angled Lateral Arm, ½" x 8" x 16" |
5 ea. | 69187-S | Quick-Lock Blade Clamps |
2 ea. | 69190-B | Quick-Lock Blade Clamp - for Bookler® Blades |
1 ea. | 69740 | Swivel Blade, Harrington, 2½" x 5⅝" x 3½" |
2 ea. | 69615-SW | Swivel Blade, Sternal, 3" x 3", Bookler® Handle |
2 ea. | 72186-R | Swivel Blade, Balfour, 3½" x 3⅛" |
1 ea. | 72066-R | Swivel Blade, Malleable, 2" x 8" |
1 ea. | 69605 | Swivel Blade, Malleable, 3" x 8" |
2 ea. | 72113 | Twist Ratchet |
